Fitting composite cladding to a brick wall is one of the most common exterior upgrade jobs in the UK in 2026 — and one of the most mishandled. Get the substrate prep or fixing method wrong and you will be pulling panels off within 18 months.

TL;DR: To install composite cladding on a brick wall in 2026, you need a plumb batten framework fixed into the masonry, a ventilated cavity behind the panels, and colour-matched screws or a clip system for each panel. Akustiq UK's exterior cladding panels are designed for exactly this substrate — they install horizontally onto 38 mm battens spaced at 400 mm centres and come with matching finishing trims and corner trims to keep edges clean. Budget 1–2 days for a typical 20 m² elevation.

Why this matters

Brick walls are uneven, absorbent, and cold. Composite cladding fixed directly to masonry — without a drained cavity — traps moisture and causes the board to bow or delaminate within a few seasons. A battened system solves this. It creates a 38–50 mm air gap that lets the wall breathe, drains any water that gets behind the panels, and gives you a true vertical plane to work off regardless of how uneven the brickwork is.

What you'll need

Tools

SDS drill with 8 mm masonry bit
Spirit level (1.2 m or longer)
Tape measure and chalk line
Mitre saw or circular saw with fine-tooth blade
Cordless drill/driver
Caulking gun

Materials

Composite cladding panels (Akustiq UK exterior cladding panels in your chosen finish — exterior cladding panel oak is a popular starting point)
Treated softwood battens: 38 mm × 50 mm, enough for horizontal runs at 400 mm vertical centres
Frame fixings: 7.5 × 100 mm hammer bolts or Rawlbolts into masonry, one every 600 mm along each batten
DPC (damp-proof course) tape or cavity closer for top and bottom
Colour-matched cladding screws (e.g. exterior cladding screws oak)
Finishing trims and corner trims to match your panel colour
Exterior-grade silicone sealant

Time: 1 day for prep and battening, 1 day for panel installation on a standard 20 m² elevation.

Step-by-step installation

Step 1 — Survey and mark the wall

Check the brick face for loose mortar, efflorescence, or damp patches before anything else. Any crumbling joints need repointing and must be fully dry — allow at least 5 days after repointing — before you fix battens. Use a chalk line to snap a level datum at the height of your lowest batten. Every subsequent batten runs parallel to this line, so accuracy here saves hours later. Mark batten positions at 400 mm vertical centres up the full height of the elevation.

Common mistake: Starting from the top or working by eye. Brickwork is rarely perfectly level; your datum line is the only reference that matters.

Step 2 — Fix the batten framework

Hold the first batten on the datum line and drill through it into the masonry at 600 mm intervals using the SDS drill and 8 mm bit. Insert frame fixings and tighten until the batten sits firmly against the wall. Use timber packing shims behind any sections where the brick face is recessed, keeping the outer face of every batten in the same vertical plane — check with your spirit level and a long straightedge across multiple battens.

Leave a 10 mm clear gap between the bottom batten and ground level. This gap is your drainage exit; blocking it defeats the whole ventilated cavity system.

Expected outcome: A flat, plumb grid of battens with all outer faces within 3 mm of a common plane across the entire elevation.

Step 3 — Install DPC and cavity closers

Fix a strip of DPC tape along the top of the batten framework before panels go on. At the base of the wall, fit a ventilated cavity closer (a proprietary plastic strip with insect mesh) that keeps the cavity open for drainage and airflow but blocks birds and pests. At window and door reveals, run DPC tape around the reveal jambs so water cannot track behind panels at the edges.

This step takes 20–30 minutes but is the single biggest factor in long-term panel performance.

Step 4 — Dry-lay and plan your panel runs

Before fixing anything, measure the wall width and divide by your panel width to calculate how many full panels fit and what width the cut panel at each end will be. Aim for cut panels of at least 50 mm — anything narrower looks unfinished and is harder to screw cleanly. Adjust your start position left or right to balance the cuts.

If you ordered a sample first (the sample outdoor wall panel oak is useful for checking colour against your render or window frames in natural light), this is the step where that reference pays off.

Common mistake: Starting the first panel tight to a corner without accounting for the corner trim profile, which adds 10–15 mm. Fit corner trims first, then butt panels to them.

Step 5 — Fix corner and finishing trims

Fit exterior cladding corner trim oak (or your matching colour) at all external corners before the first panel goes on. These trims are screwed directly through the batten at each corner post. At the top of the elevation — where panels meet soffits, fascias, or a wall above — fit finishing trims first so the top panel edge slides into the trim channel rather than being exposed.

Pre-drill pilot holes in the trims to avoid splitting. Seal the back of each trim with a thin bead of exterior silicone before pressing it against the battens.

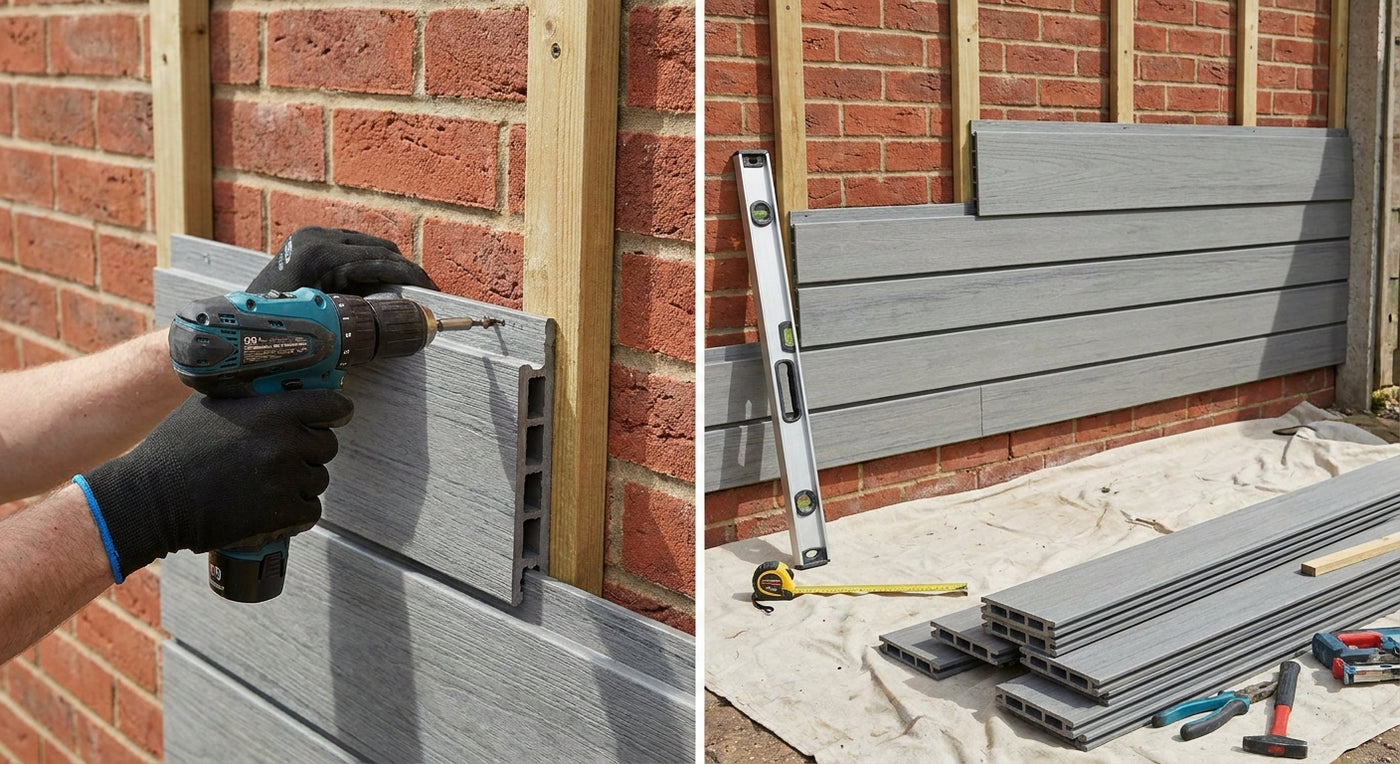

Step 6 — Install panels from bottom to top

Start at the bottom left (or right — whichever avoids a narrow off-cut at the most visible end). Offer the first panel up, clip or screw it through the face into the batten, and check it is level before fixing the opposite end. Akustiq UK's exterior cladding panels fix with colour-matched screws at each batten crossing — two fixings per panel per batten line, pre-drilled with a 4 mm bit to prevent splitting.

Work row by row upward. Maintain a 5–8 mm expansion gap between panel ends where they do not sit inside a trim channel — composite materials expand and contract with temperature changes, and in the UK's climate this gap prevents buckling in summer. In 2026, many installers are using a 6 mm plastic spacer card for consistency.

Common mistake: Over-tightening screws. Drive them flush, not countersunk — you want clamping force, not a stress riser in the panel face.

Expected outcome: Panels lying flat and tight to battens with no lateral flex when pressed.

Step 7 — Cut and fit panels around openings

Mark cuts with a pencil and straight-edge. Use a mitre saw set to 0° for clean crosscuts, or a circular saw with a fine-tooth blade (60-tooth minimum) cutting from the decorative face side up to reduce tear-out. Deburr cut edges with 120-grit sandpaper. Around window and door reveals, butt panels tight to the DPC-covered reveal and caulk the joint with colour-matched exterior silicone. Do not leave a raw cut edge exposed — either cover with a trim strip or seal with silicone matched to the panel colour.

Common mistake: Cutting from the back face. The fine tooth blade cuts cleanest when the decorative side faces up on a table saw or faces down on a circular saw — test on an offcut first.

Step 8 — Final check and sealing

Walk the full elevation and press each panel at mid-span — it should feel solid against the batten. Any hollow-sounding or flexing panels need an extra fixing. Run a final bead of exterior silicone at all trim-to-panel junctions, at the top edge where panels enter soffit trim, and at any penetrations (pipe brackets, meter boxes). Wipe excess silicone with a damp cloth within 5 minutes before it skins.

Step back and check panel alignment with a long level across three or four panels at once. Diagonal light (late afternoon sun) reveals any plane variation that flat-on viewing misses.

Troubleshooting

Panels bowing outward at mid-span Batten spacing is too wide, or battens are not all in the same plane. Add an intermediate batten, or re-shim the offending batten until its face is flush with adjacent ones.

Screws pulling out of battens Timber is wet or the pre-drill is oversized. Replace affected screws with a wider-diameter fixing, and check that battens are genuinely dry treated softwood — not green unseasoned timber.

Water tracking behind panels at base The ventilated cavity closer is blocked or missing. Clear any mortar or debris from the base gap and check the DPC tape has not been bridged by expanding foam or filler.

Panels cracking at screw points Pilot holes are too small, or screws are being overtightened. The pilot hole should be 0.5 mm larger than the screw shank diameter for composite material. Drive screws to flush, not below the panel surface.

Colour mismatch at cut edges Composite cladding has a coloured surface layer over a darker core. Use matching exterior touch-up paint or edge seal specifically formulated for composite cladding — available from most builders' merchants — on any exposed cut edges.

Panel gaps widening in winter This is normal thermal movement. Gaps up to 8 mm in cold weather close back down in summer. Only act if gaps exceed 10 mm, which suggests the original installation gap was too small.

Tools and resources

Composite cladding panels: exterior cladding panel stone grey or exterior cladding panel black — both rated for UK exterior use
Colour-matched screws: Match your panel finish to avoid visible fixings
Corner and finishing trims: Essential for clean reveals — order at the same time as panels to guarantee batch colour consistency
Samples: Order a physical sample before committing to a full order — colour and texture always look different on screen versus on a wall in UK daylight

What to do next

If your project involves a rendered wall rather than exposed brick, the batten depth and DPC detail differ slightly — read the full guide on outdoor wall cladding for rendered house exteriors before you start.

FAQ

Can you fix composite cladding directly to a brick wall without battens? No. Direct fixing to masonry traps moisture behind the panels, causes delamination, and voids most manufacturer warranties. A battened cavity system is the correct method for brick substrates in 2026.

What size battens do I need for composite cladding on brick? 38 mm × 50 mm treated softwood battens fixed at 400 mm vertical centres is the standard specification. The 38 mm depth creates enough cavity for drainage and airflow without pushing panels too far from the wall face.

How do I fix battens into brick — into the brick or the mortar joints? Always fix into the brick itself, not the mortar joint. Mortar is softer and will not hold a frame fixing under load. Use an 8 mm masonry bit and a Rawlbolt or equivalent frame fixing rated for the batten weight plus wind load.

Do I need planning permission to clad a brick wall in composite panels in the UK? For most houses in England and Wales, exterior cladding is permitted development. However, if the property is listed, in a conservation area, or if you are changing the material significantly, you must check with your local planning authority before starting work. Rules vary; always confirm in 2026 for your specific address.

How many composite cladding panels do I need for a brick wall? Measure the elevation in square metres, add 10% for cuts and waste, and divide by the panel coverage area. For Akustiq UK's exterior cladding panels, each panel covers 0.36 m² net. A 20 m² wall needs approximately 61 panels before waste.

How long does composite cladding on a brick wall last? Quality composite cladding installed with a ventilated cavity and proper fixings typically lasts 25–30 years with minimal maintenance. Annual cleaning with a mild detergent and a soft brush is all that is normally required in the UK climate.

Is composite cladding on brick suitable for a north-facing wall? Yes. Composite cladding performs better than real wood on north-facing elevations because it does not absorb moisture or support algae growth the way timber does. Use a colour with UV-stable pigment — light colours show algae staining less on shaded elevations.

Can I install composite cladding on brick myself, or do I need a tradesperson? A confident DIYer with basic power tool skills can complete this job. The critical steps — setting the datum line, shimming battens to a common plane, and maintaining expansion gaps — require patience rather than specialist trade knowledge. Allow a full weekend for a 20 m² elevation in 2026.

One last thing

The most common reason composite cladding jobs fail on brick walls in the UK has nothing to do with the panels themselves — it is fixings that rust. Standard zinc-plated screws corrode within 3–5 years in exposed UK conditions, causing streaking and eventually loose panels. Use A4 stainless steel or hot-dip galvanised fixings throughout, and buy colour-matched composite cladding screws that are specified for exterior use from the outset.
