Fixing outdoor wall panels directly to a substrate — no battens, no frame — cuts installation time significantly and works on brick, render, concrete, and timber. This guide covers every method that holds long-term in the UK climate, including the specific adhesive, fixing, and prep steps for Akustiq UK's exterior cladding panels.

TL;DR: The two reliable ways to fix outdoor wall panels without battens in 2026 are direct mechanical fixing with colour-matched screws and direct adhesive bonding with a high-grab construction adhesive. Mechanical fixing is the stronger option for permanent installs; adhesive works best on smooth, stable substrates. For most UK homes, a combination of both gives the most secure result. Akustiq UK exterior cladding panels are designed for direct fixing — the interlocking profile means you don't need a separate batten frame to achieve a flat, professional finish.

Why fixing without battens makes sense

Battens add 25–50 mm to the finished wall depth, create a cold bridge if not insulated correctly, and add at least a day's labour to any project. When your substrate is flat, sound, and dry, direct fixing is structurally equivalent and significantly faster. The key condition is substrate quality — a bowed or crumbling wall will cause problems regardless of fixing method. Fix the substrate first; the panels are the last thing to go on.

What you'll need

Tools:

Spirit level (1.2 m minimum length)
Tape measure and pencil
Drill with masonry or wood bit, sized to your fixings
Countersink bit (for mechanical fixing)
Notched trowel or cartridge gun (for adhesive fixing)
Mallet or rubber hammer
Mitre saw or circular saw with fine-tooth blade
Safety glasses and gloves

Materials:

Akustiq UK exterior wall cladding panels in your chosen finish
Exterior wall cladding screws (colour-matched to your panel finish)
High-grab exterior construction adhesive (MS polymer or polyurethane-based, rated for outdoor use)
Exterior wall cladding finishing trim for top and bottom edges
Exterior wall cladding corner trim for external angles
Exterior-grade primer (for porous or painted substrates)
Expanding foam or exterior sealant for perimeter gaps

Time: Allow 4–6 hours for a standard 10 m² wall in 2026, not including drying time for any primed surfaces.

The steps

Step 1: Assess and prepare the substrate

A direct-fixed panel is only as good as what it's bonded or screwed to. Check for loose render, damp patches, and significant bow (more than 5 mm across a 1.2 m span is too much for direct adhesive fixing alone — use mechanical fixings in those areas). Remove any flaking paint, efflorescence, or algae. Apply an exterior stabilising primer to bare masonry or highly porous render and let it cure fully — typically 4 hours at 15°C. Skipping this step is the single most common reason panels debond within 12 months.

Step 2: Set your datum line

Decide whether you're running panels horizontally or vertically, then snap a chalk line or draw a pencil datum at the starting course height. For horizontal panels on a typical wall, start 10–15 mm above finished ground or DPC level to prevent standing water wicking behind the panel edge. Use a spirit level to confirm the line is true — an error here compounds with every subsequent row. Mark stud or joist positions on render or timber-frame walls so you can hit solid material with mechanical fixings.

Step 3: Cut panels to size

Measure twice. Akustiq UK exterior cladding panels have an interlocking tongue-and-groove profile, so account for the overlap dimension when calculating cut lengths — the visible face width differs from the overall panel width. Use a fine-tooth blade at low feed rate to avoid chipping the surface finish. Cut ends that will be exposed (window reveals, corners) at a clean 90° and cover with the matching finishing or corner trim rather than leaving a raw cut edge exposed to weather.

Step 4: Apply adhesive or position fixings (or both)

Mechanical fixing only: Pre-drill and countersink through the panel tongue at 400 mm centres, then drive colour-matched screws into the substrate. The screw head sits in the tongue, which is then covered by the overlapping groove of the next panel — giving a hidden fixing line. Use wall plugs in masonry; direct drive into timber studs at 400 mm centres minimum. This method works on any substrate and is the right call on walls with minor surface variation.

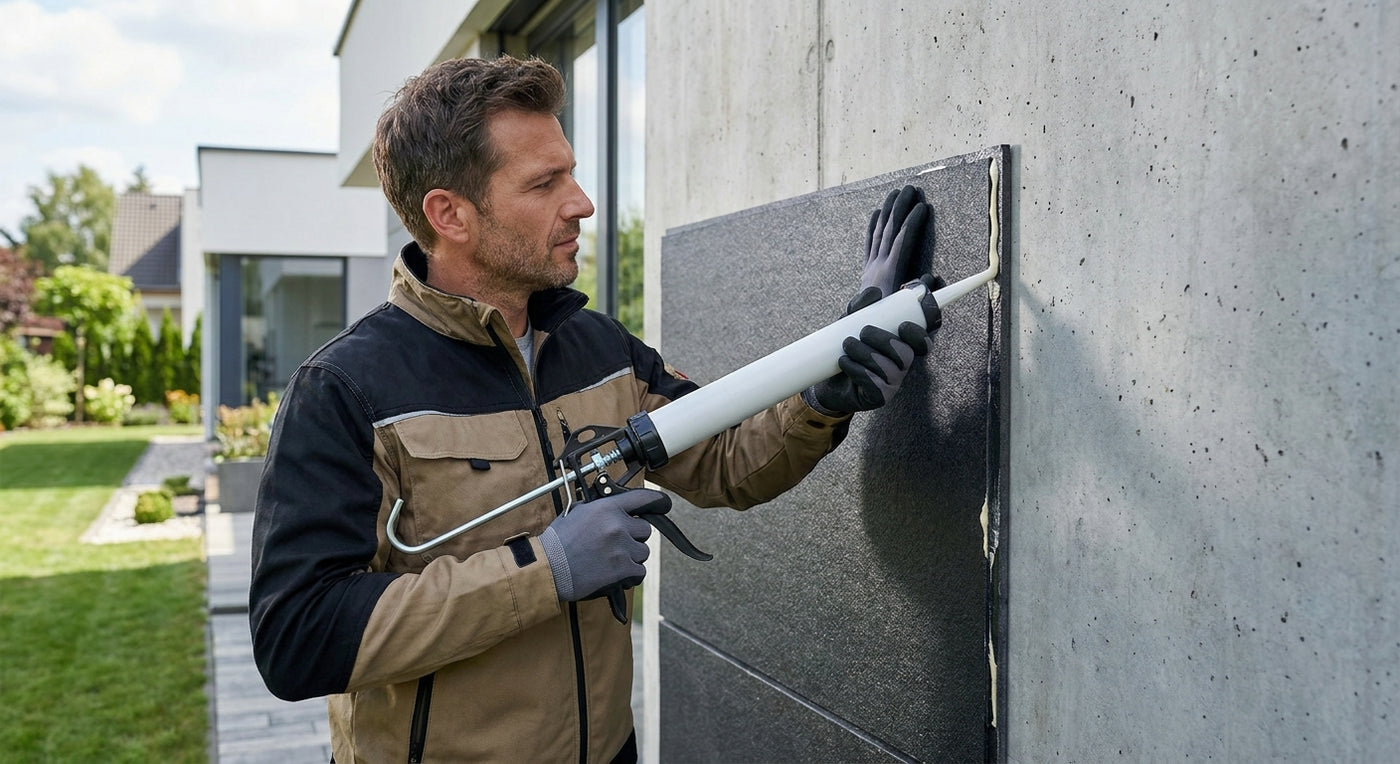

Adhesive only: Apply a continuous 6 mm bead of MS polymer adhesive in a serpentine pattern across the back face of the panel, keeping beads 20 mm from all edges to prevent squeeze-out. Press the panel firmly to the substrate, slide it 10–15 mm in one direction then back to transfer the adhesive, and hold for 60 seconds. Use temporary packers or panel clips to hold position while the adhesive skins (typically 20–30 minutes). Full cure takes 24 hours — do not stress the joint before then. Only use adhesive-only fixing on flat substrates where 100% contact is achievable.

Combined method (recommended): Apply adhesive as above, then also drive a mechanical fixing through the tongue at every other stud or at 600 mm centres. This is the most reliable approach for the UK's freeze-thaw cycle and wind-driven rain, and it's what Akustiq UK recommends for exposed elevations.

Step 5: Install panels course by course

Slide each panel's groove over the previous panel's tongue, tapping home with a rubber mallet and a scrap offcut to protect the face finish. Check level every 3 panels — interlocking profiles can creep out of true if the datum isn't re-confirmed. Stagger vertical joints by at least 300 mm between rows for both structural and visual reasons. At window and door openings, fit the finishing trim first, then cut panels to butt tight against it — don't rely on sealant alone to bridge a gap wider than 5 mm.

Step 6: Fit corner trims and finishing trims

External corners get the corner trim fixed first with mechanical fixings at 400 mm centres before the adjacent panel courses are completed. Slide the panel face edge into the trim channel as you install each course — this gives a tight, weatherproof corner without exposed cut edges. Finishing trims at top and bottom edges are fixed last, again mechanically, and sealed at the wall junction with a low-modulus exterior sealant in a matching colour. Run a bead of sealant along the back of the trim before pressing it home for a secondary weather seal.

Step 7: Final check and clean

Run a spirit level across the finished surface. Any panel sitting proud by more than 2 mm indicates adhesive build-up or substrate variation — press firmly and allow extra cure time. Remove adhesive smears immediately with a damp cloth before they skin; cured MS polymer adhesive is very difficult to remove without damaging the surface finish. Check all screw heads are flush or just below the panel face. The installation is load-ready after 24 hours and fully weather-resistant after 48 hours at temperatures above 10°C.

Troubleshooting

Panel edges lifting after 1–2 weeks: Adhesive contact area was less than 70% — substrate too rough or porous, or beads were too far from panel edges. Re-fix mechanically through the face (use colour-matched screws) and seal the edge with exterior sealant.

Screw heads visible on the face: Fixings went through the panel face instead of the tongue. Remove, fill with exterior wood filler in the matching colour, and re-fix correctly through the tongue on the next course.

Panels not sitting flat at corners: The corner trim was not fixed plumb before panel installation. Remove the affected panels, re-plumb and re-fix the trim, then re-install panels.

Colour variation between panels: Normal for any real-wood or wood-effect surface. Mix panels from at least 2 boxes during installation to distribute any batch variation across the wall area.

Gap opening at joints in cold weather: Panels were installed in summer without allowing for thermal movement. Akustiq UK exterior panels require a 2 mm expansion gap at every butt joint end — fill with flexible exterior sealant, not rigid adhesive, at these points.

Adhesive not skinning after 45 minutes in cold weather: MS polymer adhesive requires temperatures above 5°C and relative humidity above 40% to cure. Below 5°C, use a mechanical-fixing-only approach until temperatures recover.

Tools and resources

Exterior wall cladding panels — available in Birch, Oak, Black, and Stone Grey finishes
Colour-matched screws, corner trims, and finishing trims for each finish — all listed in the Akustiq UK exterior accessories range
For a detailed walkthrough of installing cladding on brick specifically, see how to install outdoor cladding on a brick wall

What to do next

If your project involves a rendered facade rather than bare masonry, the substrate prep differs — primer type, adhesive open time, and fixing centres all change. The full guide to outdoor wall cladding for rendered house exteriors covers those specifics in detail.

FAQ

Can you fix outdoor wall panels directly to brick without battens? Yes. Clean and prime the brick face first, then use either mechanical fixings into the mortar joints or masonry plugs, or a combination of MS polymer adhesive and mechanical fixings. Direct fixing to brick is standard practice in 2026 for composite and engineered cladding panels.

What adhesive works for fixing exterior cladding panels without battens? MS polymer or polyurethane-based construction adhesive rated for outdoor use. Avoid silicone-only products — they don't bond rigidly enough under panel weight. Apply in a serpentine bead pattern and supplement with mechanical fixings on any wall over 3 m high.

Do outdoor wall panels need battens to breathe? Not all panel systems do. Akustiq UK exterior cladding panels are designed for direct fixing. Battens are required when you're installing over insulation or need a ventilated cavity; on a solid, dry masonry or render substrate, direct fixing is appropriate.

How far apart should screws be when fixing cladding without battens? Fix at 400 mm centres through the tongue for standard installs. On exposed elevations or walls over 4 m high, reduce to 300 mm centres and use the combined adhesive-plus-screw method.

Will outdoor wall panels fixed without battens stay flat over winter? Yes, provided you leave the correct 2 mm expansion gap at butt joints and use flexible exterior sealant — not rigid adhesive — at those points. Thermal movement across a 300 cm panel between UK summer and winter temperatures is approximately 1.5–2 mm, which the gap accommodates.

How long does direct-fixed outdoor cladding take to install compared to a battened system? Direct fixing typically saves 30–40% of total installation time on a standard house elevation. No batten layout, no batten fixing, no secondary level check on the batten face. For a 20 m² elevation in 2026, expect 6–8 hours direct-fixed versus 10–12 hours battened.

What surfaces are not suitable for direct adhesive fixing of outdoor panels? Flaking painted walls, wet or damp masonry, surfaces with more than 5 mm bow over 1.2 m, and friable sand-and-cement render that hasn't been stabilised. Use mechanical fixings only — or repair the substrate — in these situations.

Can you fix exterior cladding panels without battens on a timber frame? Yes. Drive screws directly into the timber studs at 400 mm centres through the panel tongue. Confirm stud centres before starting — 400 mm and 600 mm centres are both common in UK timber-frame construction.

One last thing

The most underestimated step in any batten-free cladding install is the primer coat. On a porous render substrate, unprimered MS polymer adhesive loses 40–60% of its bond strength within the first freeze-thaw cycle — not because the adhesive fails, but because the substrate surface delaminates. One hour with a brush and a pot of exterior stabilising primer in 2026 prevents a full re-fix two winters later.
